Here's a step-by-step tutorial on how to replace the GPU cooling fan in a ASUS Strix G15, G17, Strix Scar 15, 17 using compatible fan models like:

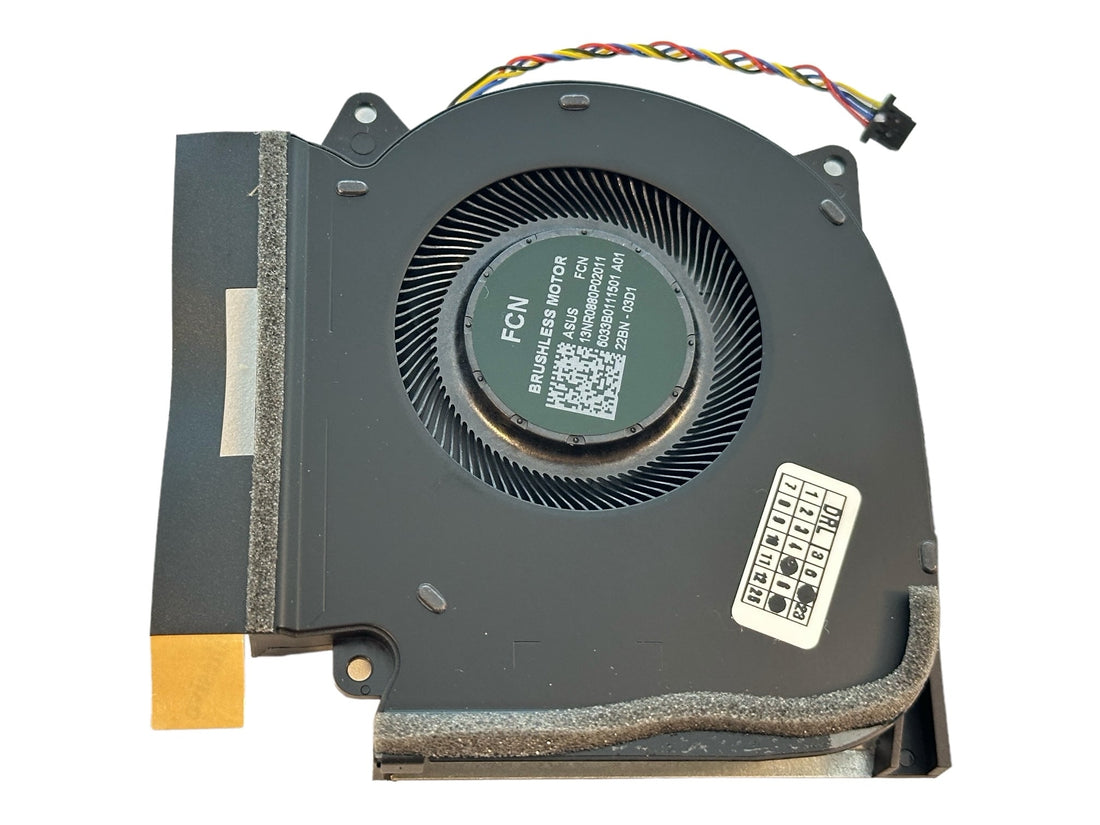

✅Part Number: 13NR0880P02011
✅Model: DFSCK22D058830-FPPM 6033B0111501 A01
🔧 How to Replace the GPU Fan in ASUS Strix G15, G17, Strix Scar 15, 17 (G15 G513IM G513IR G513QM, Scar 15 G533QM G533QR, G17 G713IM G713IR, Scar 17 G733QM G733QR)
⚠️ Disclaimer
This process involves disassembling your Laptop. Doing so may void the warranty. Proceed only if you're comfortable with delicate electronics and static safety.
🧰 Tools and Materials Needed
Phillips screwdriver (size PH0 or PH1)
Plastic spudger (optional but helpful)
Thermal paste (new)
Isopropyl alcohol & lint-free cloth
Replacement fan: 13NR0880P02011 DFSCK22D058830-FPPM 6033B0111501 A01
Anti-static wrist strap (recommended)
🔌 1. Power Off and Unplug
Shut down the Laptop completely.
Unplug the power adapter and all connected cables.
Press and hold the power button for a few seconds to discharge remaining power.
📦 2. Remove the Bottom Cover
Turn the Laptop upside down.
Use a Phillips screwdriver to remove the four screws from the bottom.
Carefully lift off the bottom cover.
💽 3. Remove the SSD and RAM (Optional but Safer)
If needed, remove the M.2 SSD and RAM to prevent damage.
Set them aside in anti-static packaging or on a clean surface.
🧱 4. Remove the Mainboard
Disconnect all internal cables (fan, front panel, etc.).
Unscrew the board mounting screws.
Gently slide or lift the motherboard out of the case. Be careful of connectors underneath.
❄️ 5. Locate and Remove the GPU Fan
The fan is mounted on top of the heatsink.
Disconnect the fan cable from the motherboard.
Remove the screws holding the fan in place.
Carefully lift the fan off.
🧼 6. Clean the Heatsink and GPU
Remove any old thermal paste from the CPU and heatsink using isopropyl alcohol and a lint-free cloth.
Let everything dry.
🔁 7. Install the New Fan
Place the new fan on the heatsink.
Align screw holes and secure it with screws.
Reconnect the fan cable to the motherboard.
Apply a small amount (pea-sized) of new thermal paste to the GPU.
🧩 8. Reassemble the Laptop
Carefully place the motherboard back into the chassis.
Reconnect internal cables.
Reinstall the SSD and RAM if you removed them.
Close the case and screw the bottom cover back on.
⚙️ 9. Test the System
Plug in the power and boot the Laptop.
Enter the BIOS to verify that the fan is detected and spinning.
Monitor GPU temperatures using software like HWMonitor or Intel Power Gadget.
🎉 Done!
You’ve successfully replaced the GPU fan in your ASUS Strix G15, G17, Strix Scar 15, 17. Your system should now run cooler and quieter.
